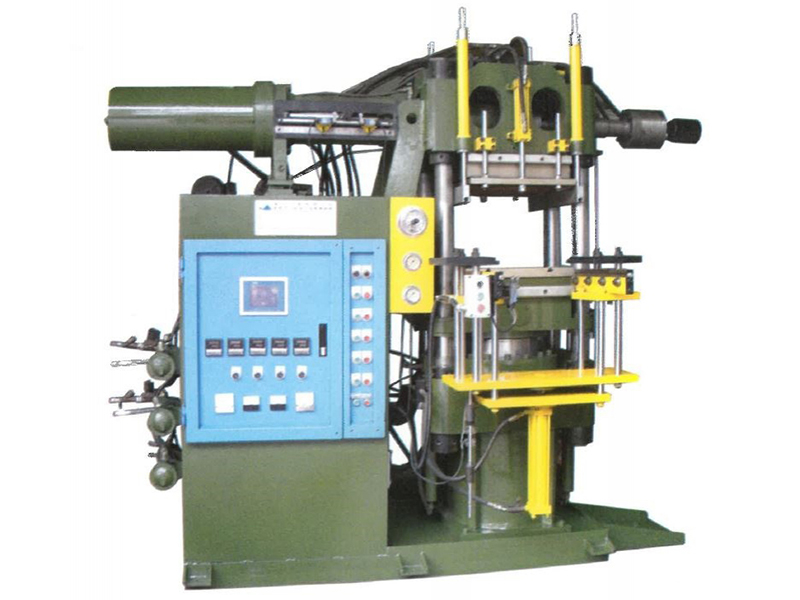

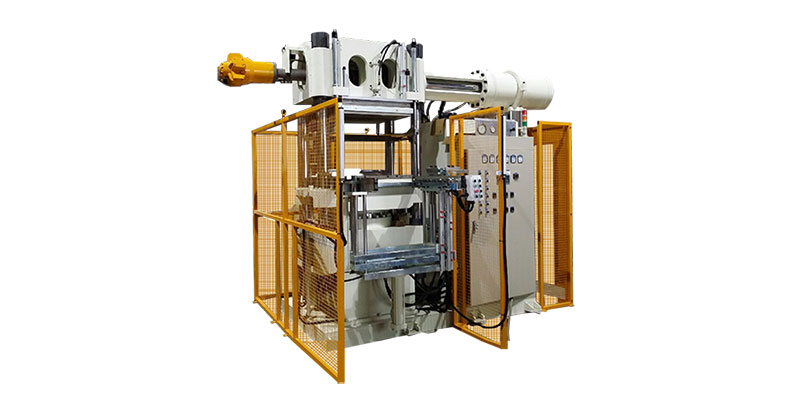

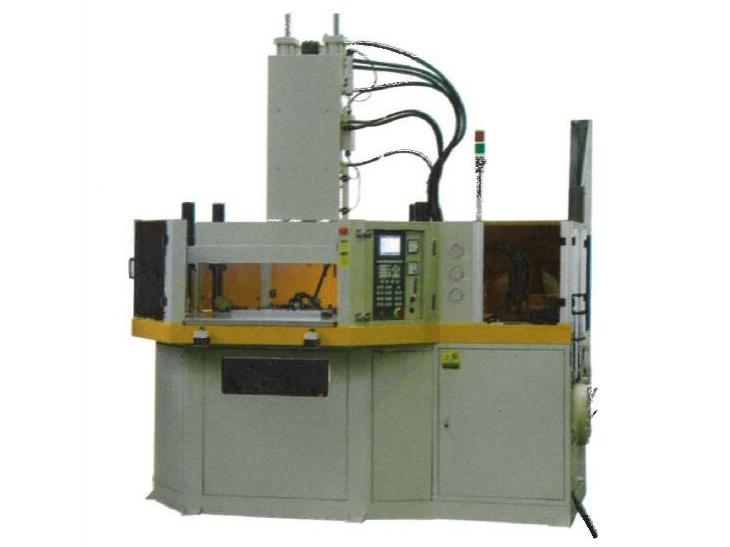

Injection Molding Machine

Precision Machinery, Injection Molding System

Hisun provides injection molding machines in a variety of capacities, ranging from 50 to 3000 tons. We also offer customized injection molding machines to meet unique customer requirements.

Molding Equipment Recommendations
  • Injection Molding Machine
    Rubber Molding Machine
  • Injection Molding Machine
    LSR Molding Machine, Liquid Silicone Rubber Molding Machine
Specifications
Capacity (tons) 200 250 300
Platen Size(mm) 500*550 580*600 700*700
Cylinder Bore (mm) Ø355 Ø460 Ø560
Stroke(mm) 500 560 600
Horsepower (HP) 10 20 25
Power(KW) 20 28 32.5
Injection Capacity (C.C) 1600 3000 4500
Mold Opening Method Rise and Descend Front Ejection Push and Pull
Injection Molding MachineInjection Molding Machine
Specifications
Capacity (tons) 200 300 500
Platen Size(mm) 500*550 580*600 700*700
Cylinder Bore (mm) Ø355 Ø460 Ø560
Stroke(mm) 500 560 600
Horsepower (HP) 10 20 25
Power(KW) 20 28 32.5
Injection Capacity (C.C) 1600 3000 4500
Mold Opening Method Rise and Descend Front Ejection Push and Pull
Benefits
  • The injection molding machine is equipped with an automatic feeding system, thus ensuring material weighing and cutting processes are not necessary.
  • The specially designed mold runner easily injects raw materials into complicated mold cavities.
  • The injected raw material’s quantity is controlled to effectively reduce the risk of rough edges.
  • This machine is suitable for deep cavity and complicated mold.
  • It uses different demolding mechanisms to reduce manual operation time.
Custom Options

This compression molding press can be customized according to your requirements.

  • Capacity: 50 to 3000 tons
  • Platen Size: The largest platen we have ever made is 2.4m x 3.5m, though we offer larger upon request.
  • Temperature: 350℃ at maximum
