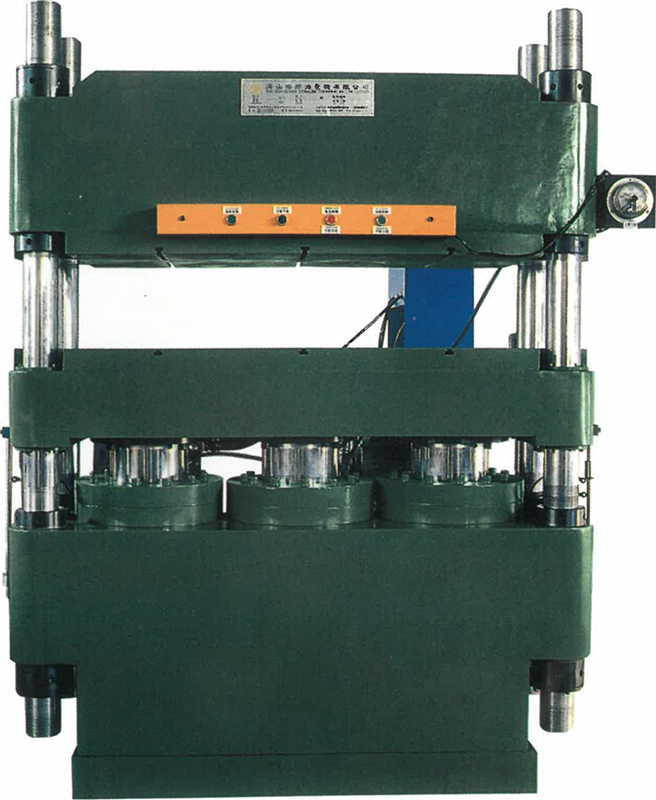

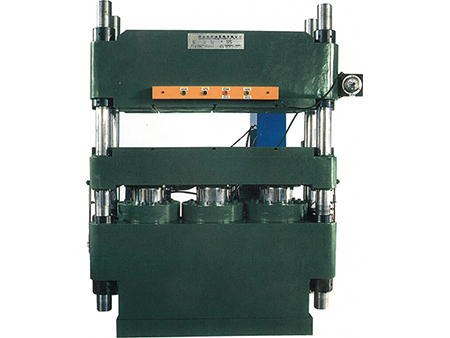

HST Hydraulic press

Hydraulic Press Machine, Hydraulic Equipment

HST Hydraulic press
Benefits
  • The machine body is a single piece of formed FCD-50 ductile iron, ensuring the outstanding durability and extended service life.
  • The press die is processed through a grinding process to ensure the high degree of parallelism.
  • The uniform clamping force on the hydraulic press ensures products made using this equipment feature a high-quality surface.
  • The clamping force is freely adjustable according to your requirements.
Specifications
Model HST-150 HST-200 HST-250 HST-300
Capacity (tons) 150 200 250 300
Platen Size (mm) 500*800 600*1000 600*1200 600*1650
Cylinder Bore (mm) Ø300 Ø355 Ø220*3 Ø250*3
Ram Stroke (mm) 300 350 400 450
Horsepower (HP) 7.5 10 10 10
Weight (KG) 4000 5000 6500 8000
Custom Options
  • Capacity: 50 to 3000 tons
  • Platen Size: The largest platen we have ever made is 2.4m x 3.5m, though we offer larger if required.
  • Dongguan Dalang Hisun Hydraulic Machinery Factory Established in 1998, Dongguan Dalang Hisun Hydraulic Machinery Factory has more than 20 years of experience in the development and manufacturing of a variety of hydraulic equipment used in an equally extensive array of industries. We offer both standard and customized equipment, thus satisfying a variety of customer needs from around the world. Our customers come from the United States, Japan, Malaysia, Indonesia, Thailand, and other locations.
  • Products
    1. Hydraulic Press
    2. Compression Press
    3. Vacuum Press
    4. Injection Molding Machine
  • Application
    1. Hydraulic Press
    2. Molding Press
