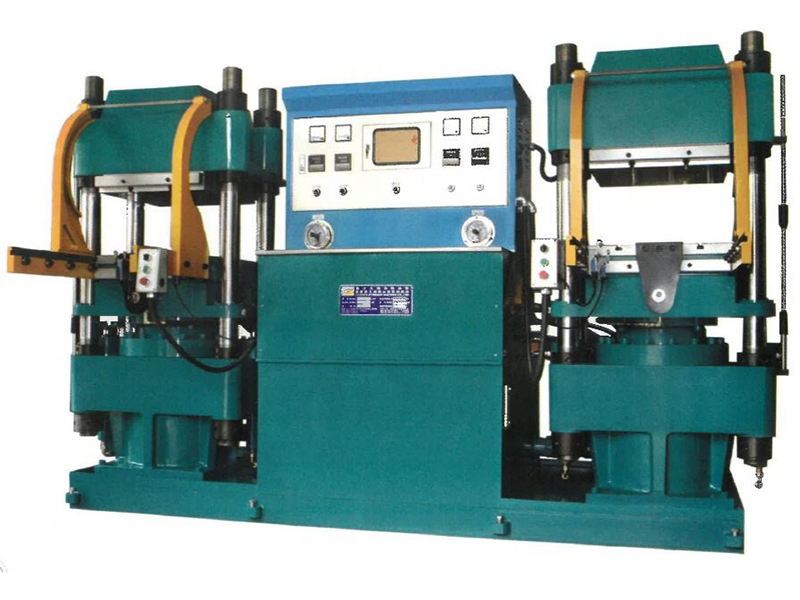

HSB Compression Molding Press

Compression Molding Press Machine, Compression Press Machine

  • HSB Compression Molding Press
  • HSB Compression Molding Press
Benefits
  • The compression molding press is suitable for 2-layer molds.
  • This compression press is easy to operate and features an easy to install mold.
  • It features a quick demolding and high productivity.
Specifications
Capacity (tons) 150 200 250 300
Platen Size (mm) 460*460 520*530 560*600 600*650
Cylinder Bore (mm) Ø300 Ø355 Ø400 Ø450
Stroke(mm) 300 350 400 450
Horsepower (HP) 7.5 10 10 10
Cylinder Stroke (mm) 500 550 580 630
Power(KW) 11.2 13.2 15 18
Weight(KG) 5000 7500 9500 12000
Dimension (mm) 2800*1600*1600 300*1800*1800 3300*1900*1900 3600*2000*2000
  • Dongguan Dalang Hisun Hydraulic Machinery Factory Established in 1998, Dongguan Dalang Hisun Hydraulic Machinery Factory has more than 20 years of experience in the development and manufacturing of a variety of hydraulic equipment used in an equally extensive array of industries. We offer both standard and customized equipment, thus satisfying a variety of customer needs from around the world. Our customers come from the United States, Japan, Malaysia, Indonesia, Thailand, and other locations.
  • Products
    1. Hydraulic Press
    2. Compression Press
    3. Vacuum Press
    4. Injection Molding Machine
  • Application
    1. Hydraulic Press
    2. Molding Press
