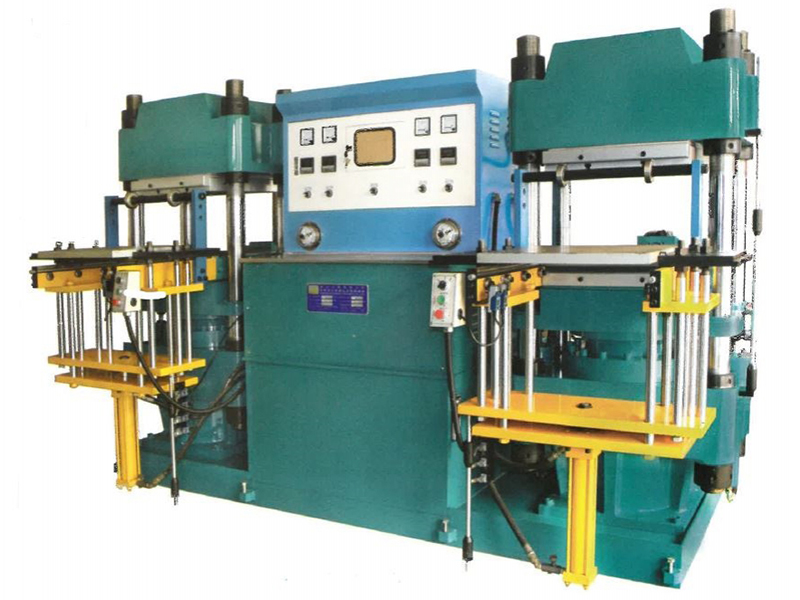

HSD Compression Molding Press

Compression Molding Press Machine, Compression Press Machine

  • HSD Compression Molding Press
    1. HSD Compression Molding Press
    2. HSD Compression Molding Press
Benefits

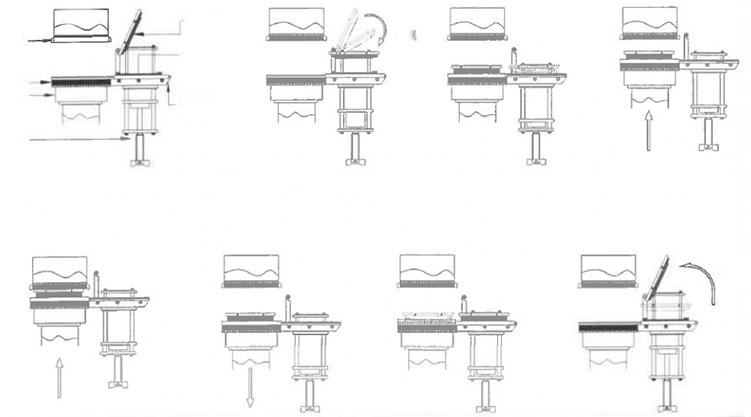

  • The front ejection design makes it easy to place materials and collect finished products.

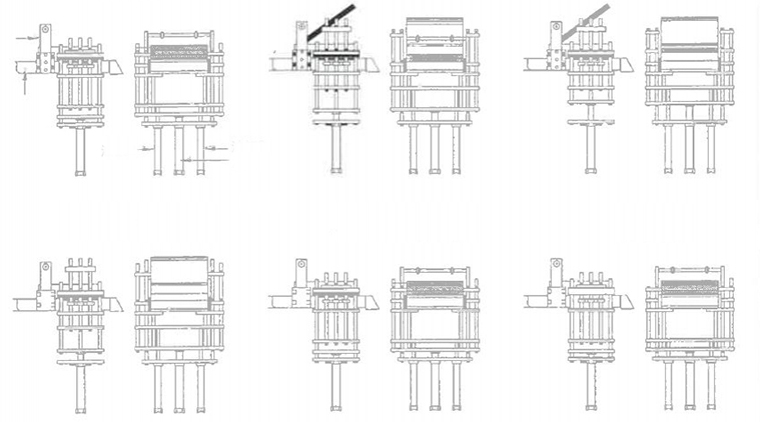

  • It supports automatic multi-layer demolding to save both labor and time.
  • This compression molding press is equipped with a programmable controller to ensure the press is easy to adjust.
Specifications
Capacity (tons) 150 200 250 300
Platen Size (mm) 460*460 520*530 560*600 600*650
Cylinder Bore (mm) Ø300 Ø355 Ø400 Ø450
Stroke (mm) 300 350 400 450
Horsepower (HP) 7.5 10 10 10
Cylinder Stroke (mm) 500 550 580 630
Power (KW) 11.2 13.2 15 18
Weight (KG) 5000 7500 9500 12000
Dimension (mm) 2800*1600*1600 300*1800*1800 3300*1900*1900 3600*2000*2000
Custom Options

This compression molding press can be customized according to your requirements.

  • Capacity: 50 to 3000 tons
  • Platen Size: The largest platen we have ever made is 2.4m x 3.5m, though we offer larger upon request.
  • Temperature: 350℃ at maximum
